GWS Exhaust Silencer for Dry Scroll Vacuum Pumps

High-efficiency vacuum exhaust silencers (GWS) with replaceable paper or polyester filter elements for dampening discharge noise, trapping exhaust particulates, and maintaining quiet operating environments in Geowell oil-free scroll vacuum systems.

Price range: $54.00 through $62.00

Model

Filter Element

Clear

Dedicated vacuum exhaust silencers engineered specifically for scroll vacuum pumps, featuring KF16 and KF25 flange connections with selectable paper or polyester media to lower exhaust noise by 1–3 dB and ensure clean, quiet laboratory operation.

Dual Filter Media Options (Paper & Polyester)

Available with high-retention paper elements for dry acoustic dampening and dust capture, or washable polyester elements for moisture-resistant exhaust conditions.

Standard KF16 & KF25 Flange Connectivity

Designed with standard NW/KF16 and NW/KF25 quick-clamp flange connections for direct, tool-free installation on scroll pump exhaust ports with zero leakage.

Superior Noise Attenuation & Acoustic Comfort

Significantly dampens high-frequency exhaust pulsation and gas discharge rush, creating a noticeably quieter workspace for laboratory and cleanroom environments.

Low Backpressure & Clean Exhaust

Engineered with optimized exhaust flow conductance to prevent backpressure buildup inside the pump while trapping expelled particulates from the discharge stream.

Model	Unit	GWS16	GWS25
Operating Pressure	Pa	1~10⁵
Efficiency	%	≥99
Particle Size Flitered	μm	≥2~5
Filter Element		Paper, or polyester
Inlet/Exhaust Flange		KF16	KF25
Weight	lbs	0.55	0.88
Weight	kg	0.25	0.40

Item No	Name of Parts	Unit	Standard Quantity
1	Silencer Housing	pcs	1
2	Filter Element ( Paper or polyester)	pcs	1

1. How do I select the right silencer size (GWS16 vs. GWS25)?

Select the model matching your pump’s exhaust outlet flange size:

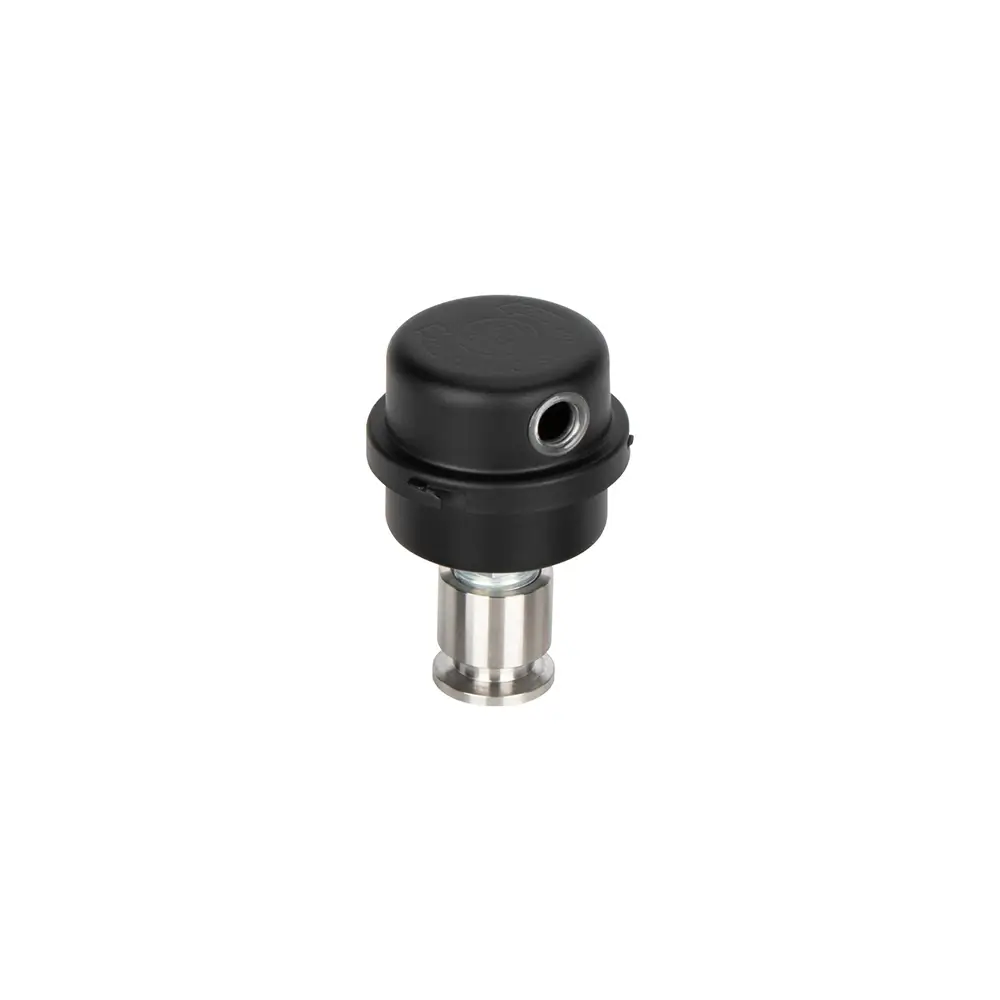

Choose GWS16 for pumps with a KF16 (NW16) exhaust port (e.g., GWSP75, GWSP150, GWSPB75, GWSPB150).

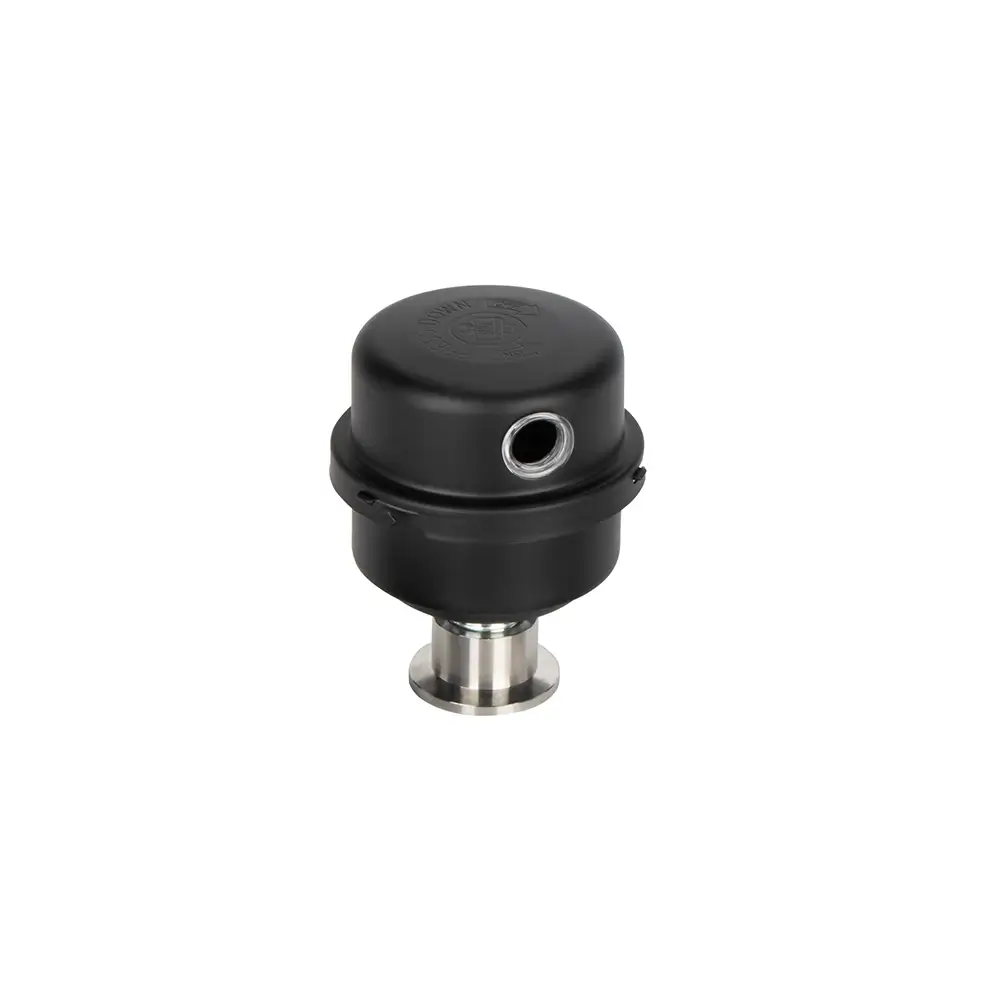

Choose GWS25 for pumps with a KF25 (NW25) exhaust port (e.g., GWSP300, GWSP600, GWSP800, GWSP1000, GWSPB300, GWSPB500).

2. What is the difference between Paper and Polyester silencer elements?

Paper Element: Recommended for dry, standard laboratory applications. It delivers maximum acoustic absorption and fine dust retention.
Polyester Element: Recommended for processes with humid discharge gases or light moisture. Polyester media resists moisture breakdown, maintains structural integrity, and can be gently blown clean or washed for reuse.

3. Does installing the GWS silencer create harmful backpressure on the pump?

No. The GWS exhaust silencer is designed with large internal surface area and optimized flow channels to keep exhaust backpressure well below the pump’s allowable safety threshold. To maintain low backpressure over time, simply inspect and replace the internal cartridge periodically when clogged.

4. Does the GWS silencer come complete with a filter element included?

Yes. Every GWS silencer assembly comes pre-installed with your chosen filter cartridge (Paper or Polyester). For future scheduled maintenance, replacement filter cartridges can be purchased separately on our dedicated Replacement Silencer Elements Page.
